TAGOO

CEILING ANTENNA

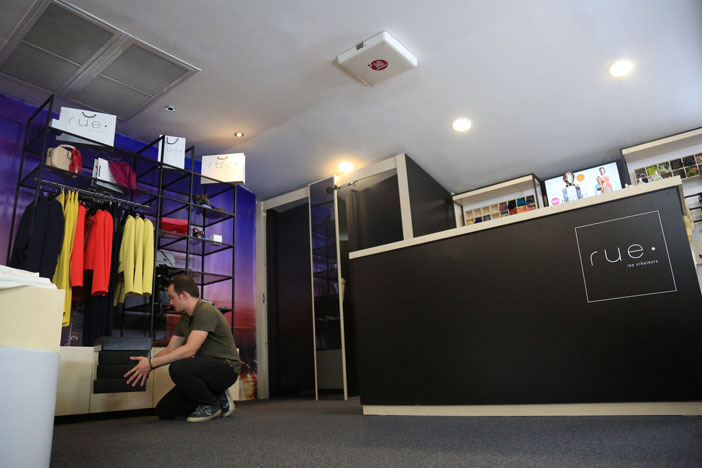

Tagoo ceiling antennas monitor all Taglette tags in store in real-time. Working in line with Contag cloud based store management system, Tagoo ceiling antennas can locate each product and employee inside the store, all stock control is made in real-time.

With Tagoo, store management becomes much more smart. Instead of using multiple systems to manage multiple things including security, stock control, product management, staff management, etc, by using Tagoo companies deal with one single system and collect a very comprehensive customer data. Tagoo provides brands data including “which products are tried most”, “which ones are taken to changing room”, “which products are combined together”, “average time spent in a changing room”, “product based trial/sales reports”, etc. All teh data can be monitored in real-time. Tagoo ceiling antennas provide location info up to 50 cm proximity and thus store personnel don’t waste time organizing the store during or at the end of the day.

Tagoo ceiling antennas are easy to set up, no need to deal with infrastructure. Works either with standard internet connection or 4G modem.

Advantages

- 100% accurate real-time stock control
- Humanless, full automatic inventory control
- Real-time product & personnel location system
- Location proximity up to 50 cm
- Coverage up to 100m²
- Cloud based management
- Fast & easy setup

Technical Features

- UHF 866-920 Mhz bandwidth
- 52 dual polarized micro antennas
- Fast read rate (300 Tags/sec)
- 60-100m² coverage zone
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- 2.5 A working current
- 13.8 W work force
- 24 Vdc
- PoE

TAGON

DESKTOP ANTENNA

It takes a lot of time to scan barcodes one by one for each product sold in retail stores. With Tagon antenna, all products to be purchased can be identified all at once without needing to read barcodes one by one. All product info is sent to store’s cash application collectively and automatically. Thanks to Tagon desktop antennas, customers no longer need to wait at cash points. Products sold with Tagon system are instantly reflected on company’s cloud based store management system and are dropped off stock list right away.

Advantages

- 60% decrease in cash point waiting lines
- Fast sales & easy return processes
- Multiple product identification
- No need for individual barcode reading
- Cloud based management
- Fast & easy setup

Technical Features

- UHF 866-920 Mhz bandwidth
- 2 dual polarized micro antennas
- Fast read rate (300 Tags/sec)
- 82 dBm maximum reader sensitivity
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- 2.5 A working current
- 13.8 W work force
- 24 Vdc
- PoE

TAGDOR

DOOR ANTENNA

Tagdor is the door antenna developed by Taglette which makes stock control processes smart and easy. Once Tagdor is placed at gates, every item inside the store or a warehouse is counted automatically in seconds. Since all the items are counted at once, there is no need to spend hours to count items individually. With Tagdor, all product movements are logged in company database automatically. Detailed information including; “the products transferred from warehouse to store”, “employees who take the items out from warehouse”, etc. is gathered and logged in database simultaneously. If a customer makes an attempt to leave the store with unpaid items, an alarm is given to ensure product security.

Tagdoor is strong enough to even count items in boxes.

Advantages

- 100% accurate stock control
- Automatic inventory tracking
- Real-time product & personnel location system
- Location proximity up to 50 cm
- Coverage up to 100m²
- Cloud based management
- Fast & easy setup

Technical Features

- UHF 866-920 Mhz bandwidth
- 52 dual polarized micro antennas
- Fast read rate (100 Tags/sec)
- 82 dBm max reader sensitivity
- 60-100m² coverage zone
- -20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- 2.5 A working current
- 13.8 W work force
- 24 Vdc
- PoE

PRINTAG

RFID PRINTER

Printag is the RFID printer designed by Taglette which does labeling and RFID tagging simultaneously.. Current barcode printers can be replaced with Printag RFID printers without having to make any change in standard product labeling processes. Printag works integratedly with Taglette cloud system so while a price tag is printed, the product stock is updated simultaneously.

With Printag, companies save time and resources without changing their standard labeling processes.

Advantages

- Simultaneous barcode & RFID printing on tags
- Real-time software log-in
- Identification & cancellation of incorrect tags
- Capability to print various tag designs
- Fast & easy setup (No software required)
- Cloud based management

Technical Features

- UHF 866-920 Mhz bandwidth
- Automatic tag cutting
- Fast printing (10 tags/sec)
- 82 dBm maximum reader sensitivity
- Auto-adjustable tag sizes
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- 2.5 A working current
- 13.8 W work force
- 24 Vdc

MAGITAG

SMART MIRROR

Magitag is the smart mirror technology designed by Taglette. Magitags are placed in stores’ changing rooms and they totally change the shopping experience for customers. Magitag works in line with Taglette’s cloud store management system Contag, and provides real-time data including “products taken to changing rooms”, “products combined together”, “ trial/sale ratios”, etc.

Thanks to Magitag, customers no longer need to call store personnel to request a product to changing room. When customers try on products, they can request another size or colour of the product without having to leave the changing room or call the sales personnel. The requesting process is simply done by the customer touching Magitag smart mirror screen. In case the product requested is out of stock, all nearby stores which has that product are displaced on screen so the customer can select to buy the product from another branch.

Advantages

- Identification & display of the products taken to the changing room
- Anti-theft alarm system (Elimination of shoplifting by 100%)
- Special campaign and price notifications
- Product combination offers
- Sales opportunities based on customer interactivity
- Payment option in changing room (self-service payment)
- Cloud based management
- Fast & easy setup

Technical Features

- Multipoint touch screen mirror
- UHF 866-920 Mhz bandwidth
- 13 dual polarized micro antennas
- Fast read rate (300 Tags/sec)
- 82 dBm maximum reader sensitivity
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- 2.5 A working current
- 13.8 W work force
- 24 Vdc
- PoE

TAGEND

RFID HAND TERMINAL

Tagend is the RFID hand terminal designed by Taglette. When there is no antenna system set-up around, companies can still use Tagend RFID hand terminals to count and locate their products & items. Tagend hand terminals are compatible with Bluetooth mobile phones, tablets and computers so all product and location data can be tracked from any device, anywhere. Tagends have a built-in sound or vibration notification options as well. Tagend hand terminals are strong enough to count products in boxes which enables companies take inventory with 100% accuracy during product transfer processes.

Advantages

- Fast manual stock control
- Sound & vibration notification to indicate proximity to a product
- Capability to count products in boxes
- Easy interaction with mobile devices
- Adjustable reading distance
- Cloud based management
- Fast & easy setup

Technical Features

- UHF 866-920 Mhz bandwidth
- 2 dual polarized micro antennas
- Fast read rate (100 Tags/sec)
- 82 dBm maximum reader sensitivity
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- Bluetooth connection
- Chargeable 3000mAh lithium battery
- Sound & vibration notification system
- Average 3 hours non-stop working capacity

MINITAG

COMPACT READER

With Minitag compact readers, the customers do not need to wait in long payment queues. At any point inside the store, customers can make payment or get information about the products. Minitag readers automatically deactivate RFID tags on products so customers can do self-service shopping and don’t need to visit cash points. Minitags are fully compatible with Taglette’s Mobile Payment system Tagpay.

Advantages

- Self-service payment experience
- Fast sales & easy product return
- Multiple product identification
- No need for individual barcode reading
- Cloud based management
- Fast & easy setup

Technical Features

- UHF 866-920 Mhz bandwidth
- Circular polarized ceramic micro antenna
- Fast read rate (100 Tag/sec)
- 82 dBm max reader sensitivity
- 20-50°C temperature interval

- %5-%95 humidity interval
- Robust design
- Notifications with sound and light
- 800mA working current
- 12 Vdc adaptor
